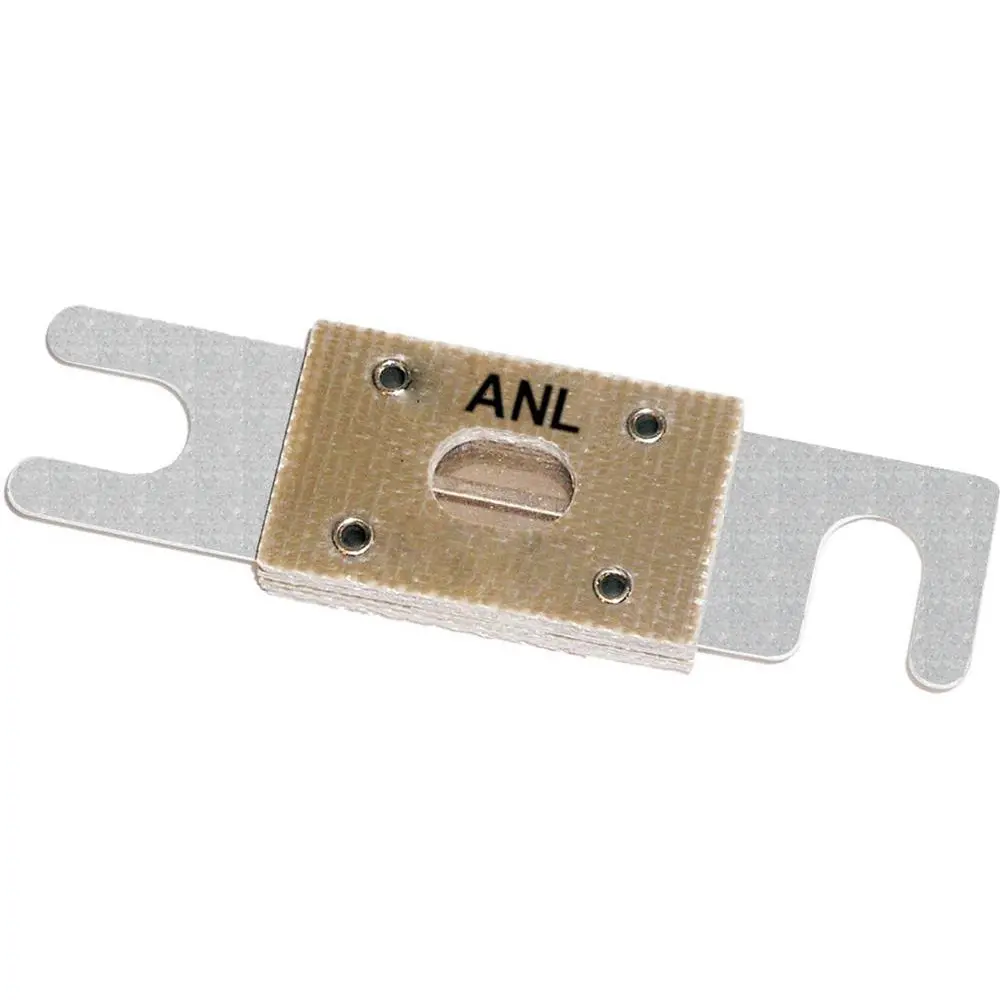

Blue Sea Systems ANL Fuse – 500 Amp High-Current Protection (Model 5137)

Description

5137
ANL Fuse
500A

• Ignition protected (conforming to SAE J1171)- safe for installation aboard gasoline powered boats
• Silver-plated connector blades for corrosion resistance
• Visible indication of blown condition
• 6,000 Ampere Interrupt Capacity (AIC) satisfies ABYC requirements for main DC circuit protection on large battery banks
• For use with Blue Sea Systems’ ANL Fuse Blocks

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Amperage: 500a
• Fuse Type: ANL
• Type: Fuses
• Box Dimensions: 3″H x 3″W x 5″L WT: 0.1 lbs
• UPC: 632085051372
