Name: Lewmar Size 4 Standard Round Portlight
Brand: Lewmar
SKU: 83364
Availability: InStock

Description

Product Description

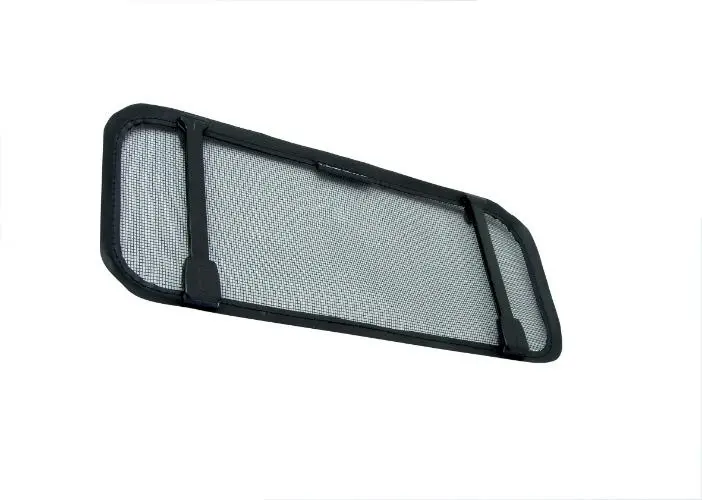

Lewmar Size 4 Standard Portlight
Specifications

Acrylic color – Smoke Grey

Version – Opening

Weight (lb) – 5.28

Acrylic Window Thickness (in) – 5/16
Dimensions

Overall Width X (in) – 7 1/2

Overall Length Y (in) – 25 7/16

Overall Height Z (in) – 5/32

Overall Radii R (in) – 2 7/16

Cut-Out Width X1 (in) – 6 3/4

Cut-Out Length Y1 (in) – 24 11/16

Cut-Out Radii R1 (in) – 2 1/16
Installation

Fast and easy installation with no complicated cut-out shape.

Portlights should be fitted to a flat surface with a maximum tolerance of 1mm

Maximum hull thickness 34mm (1 3/8 in), minimum hull thickness 7mm (1/4in)

Acrylic color is Smoke Grey

All Portlights are supplied complete with 12 off M5 25mm screws (hull thickness 17-25mm)

Design category A – Sail & Power, Area 2 CE Approved
