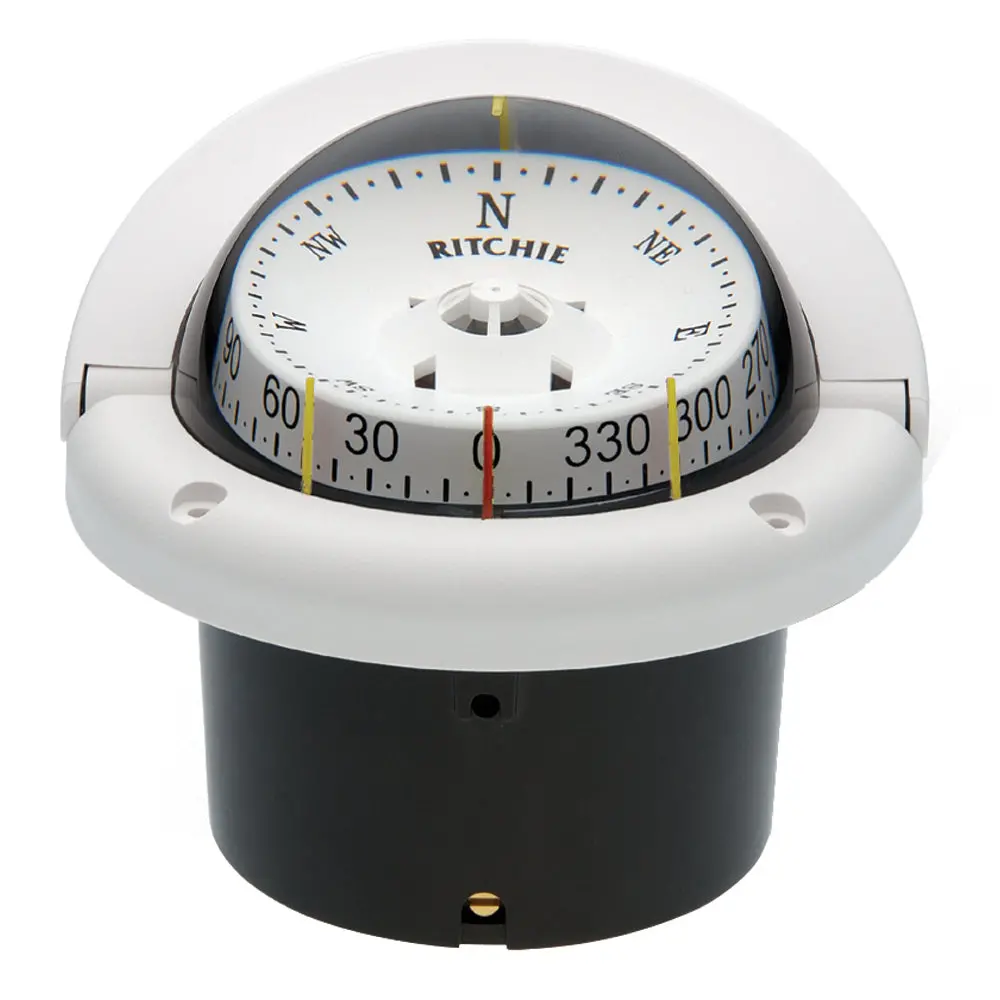

Ritchie HF-743W White Flush-Mount Helmsman Compass

Description

HF-743W – Helmsman

Features:

• 3 3/4″ (95 mm) Open Face Dial or CombiDial
• Easily Installed, Fits 4″ (102 mm) Mounting Hole
• Exclusive Built-in Green NiteVu Night Illumination
• Built-in Compensators to Easily Adjust for Deviation
• Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement
• Powerful DirectiveForce Magnets for Fast Heading Lock-on
• Movable Sun Shield
• 45 Degree Lubber Lines
• High Temperature Composite Construction for Extended Operating Range
• Adapter Rings Available. Sold separately. 6″ (153 mm)
• 100% Repairable
• Exclusive 5-Year Ritchie Warranty

Approx. Shipping Weight: 2lbs (907g)

Notes:

All magnetic compasses come standard with 12v lighting. 24 & 32v lighting options are available.

Some custom built OEM models may have different lighting.

Specifications:

• Read: Both
• Lubber Lines: Yes
• Backlight: Yes
• Mounting Style: Flush
• Box Dimensions: 7″H x 8″W x 8″L WT: 2.1 lbs
• UPC: 010342138286

Quick Guide (pdf)
Owner’s Manual (pdf)
