Ritchie SS-5000 SuperSport Flush-Mount Compass – Black

Description

Supersport™ Compasses

Developed for and tested on offshore race boats the SuperSport Series compasses feature the PowerDamp® Plus dial. This dial technology features the PowerDamp® dial skirt to prevent oscillation, larger DirectiveForce™ magnets for quick lock on and extra-large steel pivots and jewels for smooth fast action.

Features:

• 5″ (127 mm) PowerDamp Plus, High-Visibility Blue Open Face Dial with Extra Large White Numerals

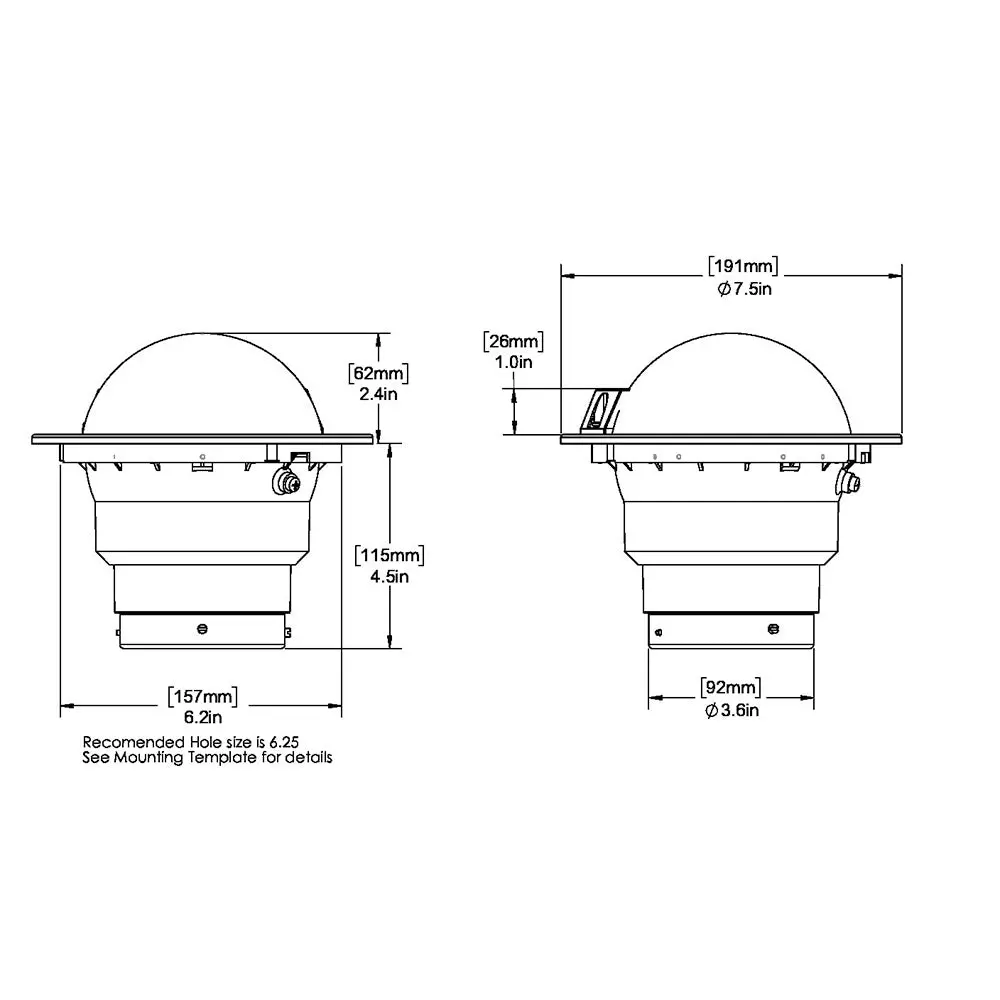

• Easily Installed, Fits 6 1/4″ (15.88 cm) Mounting Hole
• Built-in Compensators to Easily Adjust for deviation
• Internal Gimbal Systems for Maximum Stability During Adverse Pitch and Roll Conditions
• 12v Green LED lighting Standard
• 100% Repairable
• Exclusive 5-Year Ritchie Warranty

Approx. Shipping Weight: 5lbs 12oz (2.6kg)

Notes:

12v lighting standard – 24 & 32v lighting options are available.

Specifications:

• Read: Rear
• Mounting Style: Flush
• Backlight: Yes
• Lubber Lines: Yes
• Box Dimensions: 9″H x 9″W x 10″L WT: 5.7 lbs
• UPC: 010342050410

Quick Guide (pdf)
Owner’s Manual (pdf)
