Schaefer 5 Series Double Sheave Over The Top Block 1

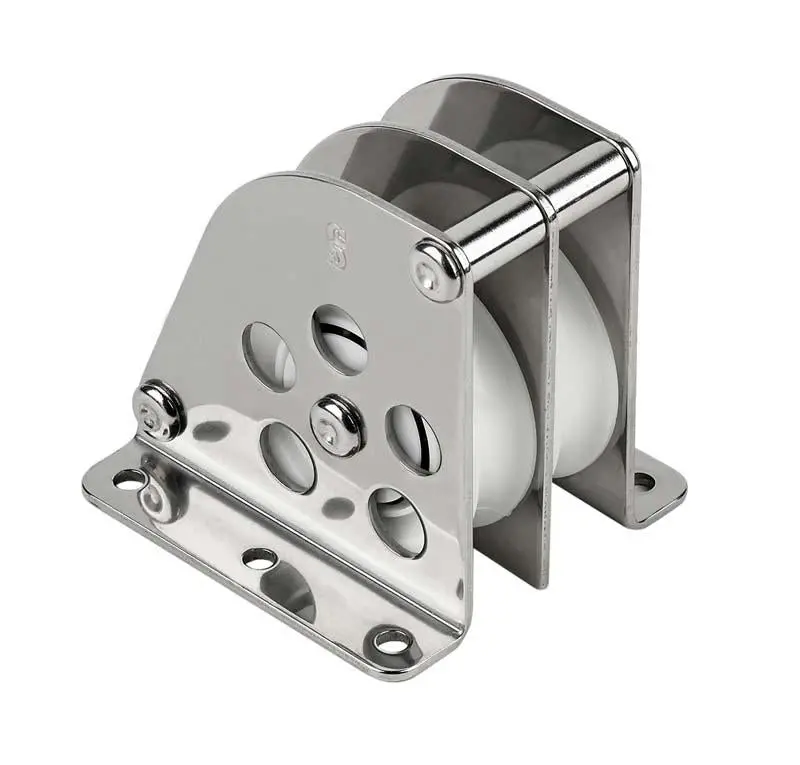

Schaefer 5-Series Double-Sheave Over-the-Top Block

Original price was: $263.55.Current price is: $87.85.

In stock

Quantity
SKU: 506-41 Category: Brand:

Description

Product Description

Schaefer 5 Series Double Sheave Over the Top Block
5 Series Double Over the Top Block. Stainless Steel cage and base provide a solid platform for clean leads. Delrin(tm) ball bearing sheaves ensure low-friction and high safe working loads.
Specifications

  • Sheave Dia.: 2 in. (51 mm)
  • Max Line Dia.: 7/16 in. (11 mm)
  • Length: 2 7/8 in. (73 mm)
  • Width: 2 3/4 in. (76 mm)
  • Overall Height: 2 15/16 in. (74 mm)
  • Sheave Height: 2 in. (51 mm)
  • C/C: 2 5/16 in. (59 mm)
  • Fasteners: (6) #10 (5 mm) RH
  • Safe Working Load: 1000 lbs. (40 kg.)
  • Weight: 12.6 oz. (357 g)

    • Explore more from our collection.
