Schaefer Flat-Base Single Cheek Block Featuring Delrin Sheave

Original price was: $170.30.Current price is: $85.15.

In stock

Quantity

Description

Product Description

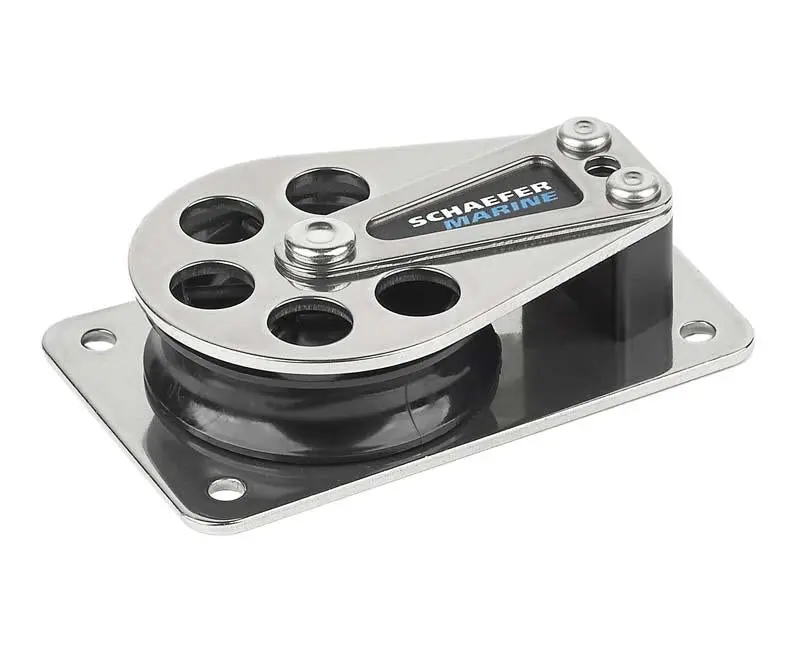

Schaefer Flat Base Delrin Single Cheek Block
7 Series Cheek Block with anodized Aluminum cheek and ball bearing sheave. Delrin(tm) ball bearing sheave provides low-friction and high safe working load. Stainless steel base distributes loads to a large surface area.
Specifications:

  • Sheave Dia.: 2 3/8 in. (60 mm)
  • Length: 4 3/8 in. (111 mm)
  • Width: 2 3/4 in. (70 mm)
  • Height: 1 in. (25 mm)
  • Fasteners: (4) 1/4 in. RH (6 mm)
  • C/C: 3 5/8 in. (92 mm)
  • SWL: 1700 lbs. (771 kg)
  • Weight Alum: 9.6 oz (272 g)
  • Max Line: 1/2 in. (13 mm)
