Schaefer Flat Base/Sngl/2 3/8" Delrin Sheave 1

Schaefer Flat-Base Single Cheek Block with 2 3/8″ Delrin Sheave

Original price was: $173.50.Current price is: $86.75.

In stock

Quantity
SKU: 705-11 Category: Brand:

Description

Product Description

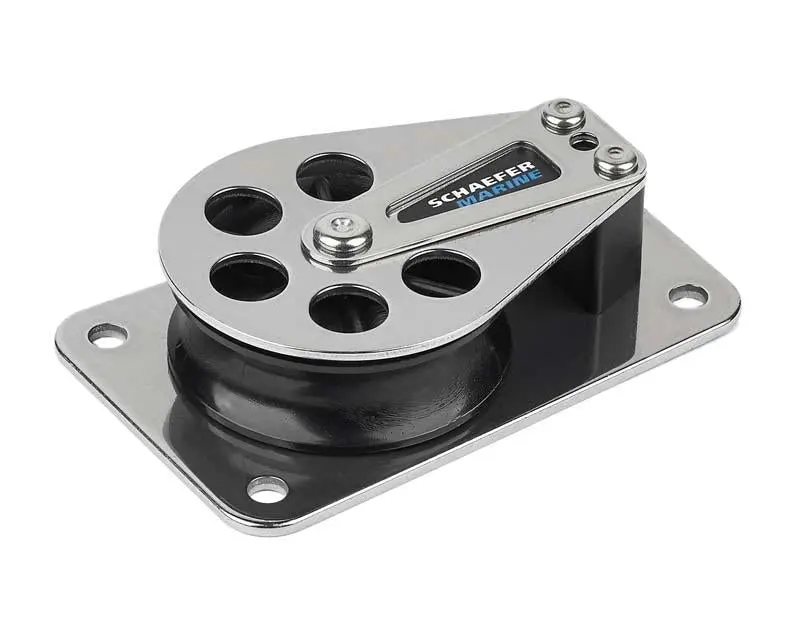

Schaefer Flat Base/Sngl/2 3/8″ Delrin Sheave
7 Series Cheek Block with Stainless Steel cheek. Delrin(tm) sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area.
Specifications:

  • Sheave Dia.: 2 3/8 in. (60 mm)
  • Length: 4 3/8 in. (111 mm)
  • Width: 2 3/4 in. (70 mm)
  • Height: 1 in. (25 mm)
  • Fasteners: (4) 1/4 in. RH (6 mm)
  • C/C: 3 5/8 in. (92 mm)
  • SWL: 2250 lbs. (1020 kg)
  • Weight Stain: 11 oz (312 g)
  • Max Line: 1/2 in. (13 mm)
