Schaefer Spring Loaded/Lined Slide 1

Schaefer Reinforced Spring-Loaded Lined Slide

Original price was: $268.80.Current price is: $89.60.

In stock

Quantity
SKU: 505-82 Category: Brand:

Description

Product Description

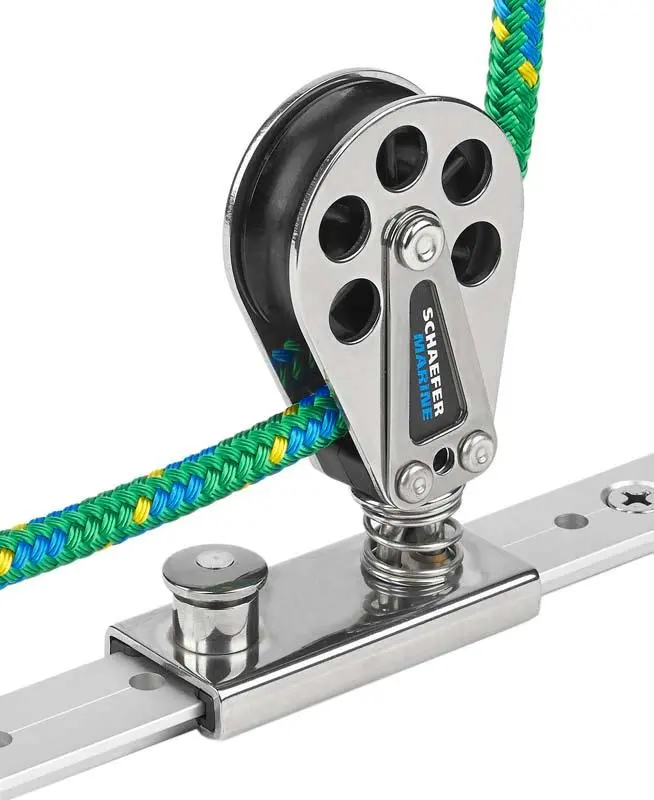

Schaefer Spring Loaded/Lined Slide/S.S.
505-82 Stand up spring block for 1″ T-Track. Delrin(tm) sheave ensures smooth operation and high safe working load. Stainless Steel cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment. For boats to 27′.
Specifications:

  • Track Size: 1 in. x 1/8 in. (25 mm x 3 mm)
  • Sail Area: 27′, 5000 lbs. 315 sq. ft,(8 m, 2270 kg, 29 m2)
  • Sheave Dia.: 2 in. (51 mm)
  • Max Line: 7/16 in. (11 mm)
  • Length: 3 in. (76 mm)
  • Width: 1 1/4 in. (31 mm)
  • Height 4 5/32 in. (105 mm)
  • Bearing Height: 2 7/32 in. (56 mm)
  • Weight: 6.5 oz (184 g)
  • SWL: 1750 lbs. (795 kg)

    • Explore more from our collection.
