Shakespeare Galaxy 5400-XT 4-Foot VHF Antenna Featuring 3 dB Gain

Description

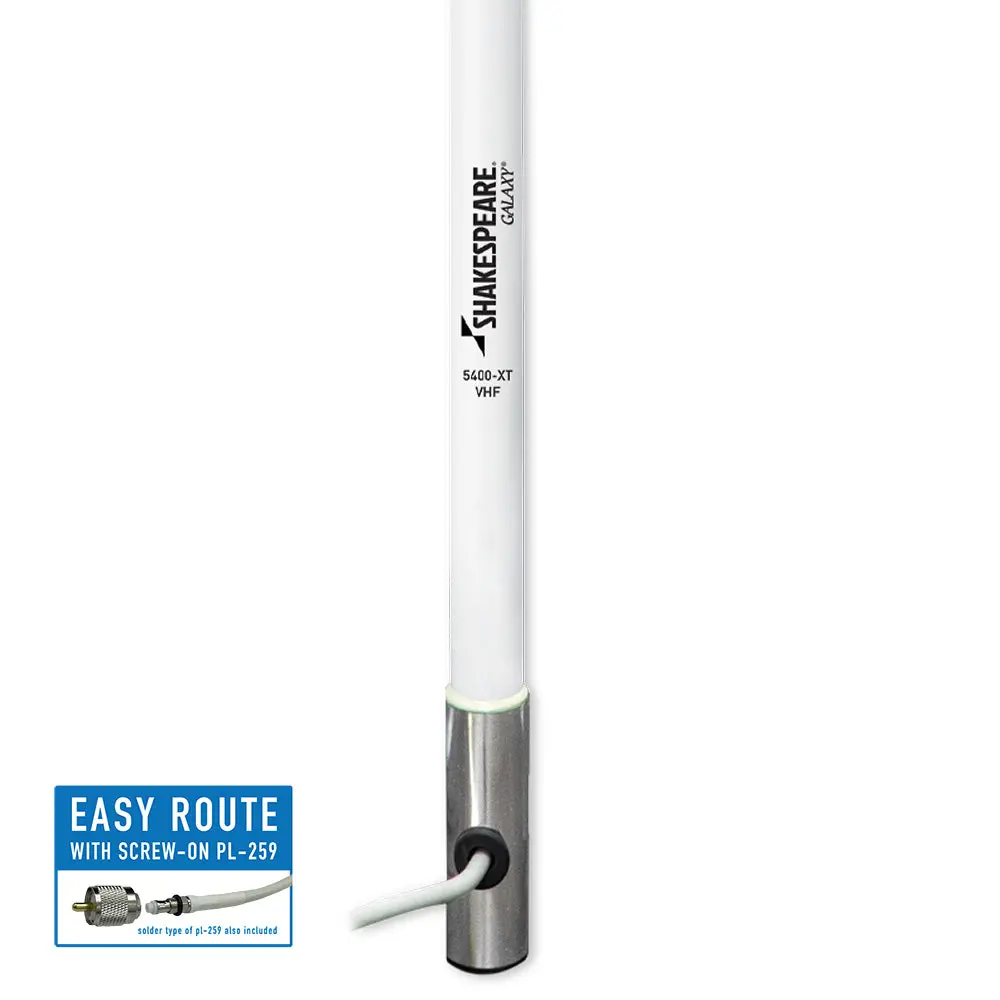

5400-XT Galaxy 4′ VHF Antenna – 3dB Gain

The compact Galaxy® 5400-XT is an outstanding, general purpose 4′ antenna of heavy duty construction for general purpose communications. Its at home on T-tops, hard-tops, and other positions aloft, where its small size can deliver maximum range.

Features:

• Center-fed 1/2 wave coaxial sleeve
• Brass and copper elements for maximum range
• Stainless steel ferrule with standard 1″-14 thread
• Includes 20′ RG-8/X cable and a PL-259 connector
• Suggested mount: Shakespeare Style 4187 Ratchet Mount
• One section
• Shakespeare Limited Warranty: 5 years
• Includes FME Cables

Technical Specifications:

• Frequency: VHF Marine Band
• Bandwidth: 5 MHz within 2.0:1 VSWR
• SWR: Nominally 1.5:1 at 156.8 MHz
• Gain: 3 dB
• Max Input (Watts): 50 watts
• Height (feet): 4

Specifications:

• Antenna Band: VHF
• Color: White
• Construction: Fiberglass
• Ferrule Type: Stainless Steel
• Length (Inches): 48″
• Box Dimensions: 3″H x 3″W x 52″L WT: 2.5 lbs
• UPC: 719441100605

Quick Guide (pdf)
