Tylaska T40 Clevis Bail Snap Shackle Assembly

Description

Product Description

Tylaska T40 Clevis Bail Snap Shackle
Tylaska T40 Snap Shackles are designed for massive sailboats or for towing or individual applications. With a breaking strength of 40,000 pounds, this shackle can handle sail loads on the largest of sailboats. They can be opened using either a trigger or lanyard. A lanyard allows for remote operation – ideal for towing applications. The locking pin provides extra security from accidental release.
Specifications

Safe Working Load(lb.) – 20,000 (9,070kg)

Breaking Strength(lb.) – 40,000 (18,140kg)

Boat Size(ft.) – 100′ + Maxi Boats

Weight – 6.3lbs (2.87kg)

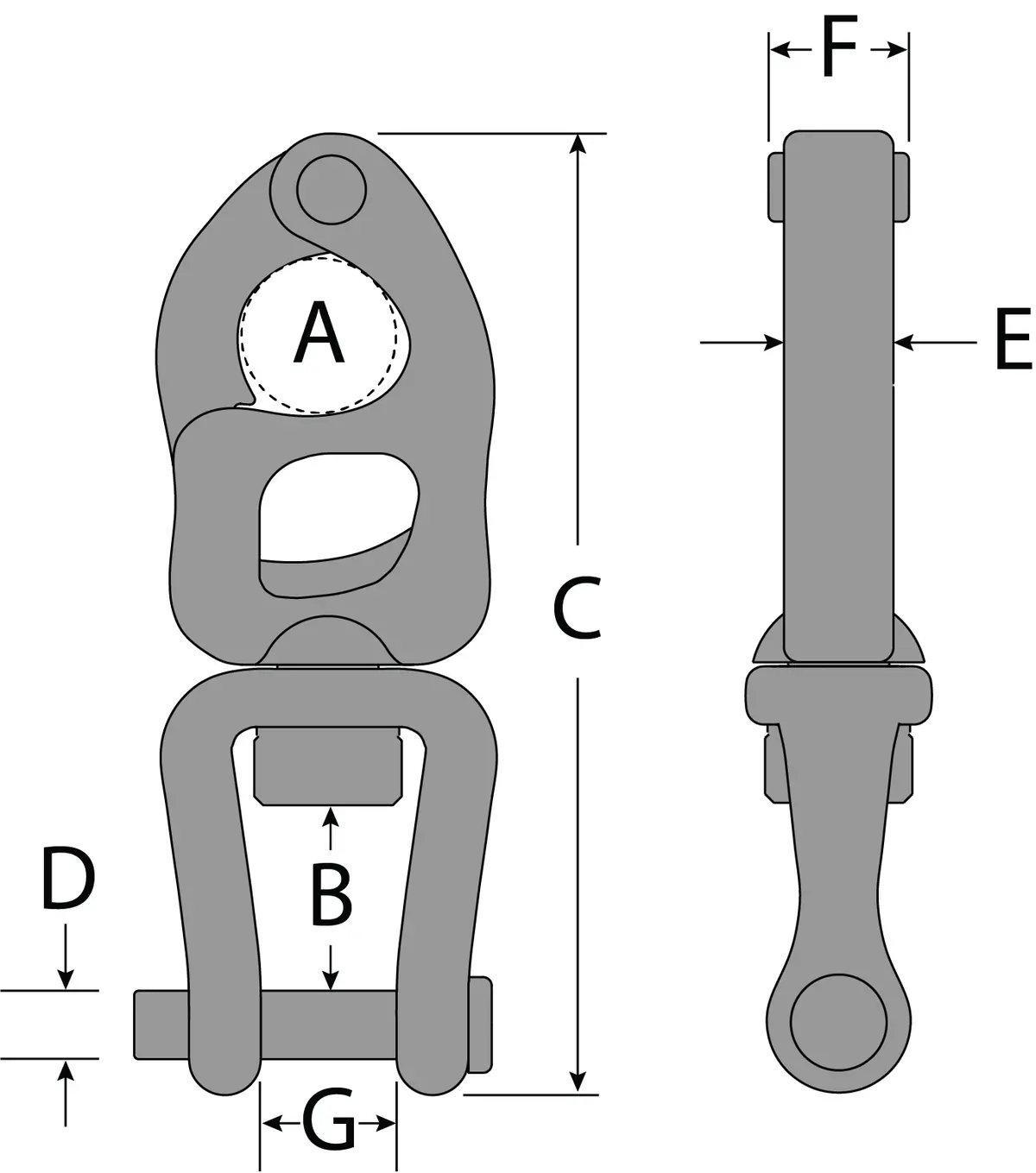

Dimensions

A – 1.75″ (44.5mm)

B – 2.00″ (50.8mm)

C – 10.12″ (257mm)

D – 0.75″ (19mm)

E – 1.12″ (28.5mm)

F – 1.39″ (35.3mm)

G – 1.50″ (38.1mm)
