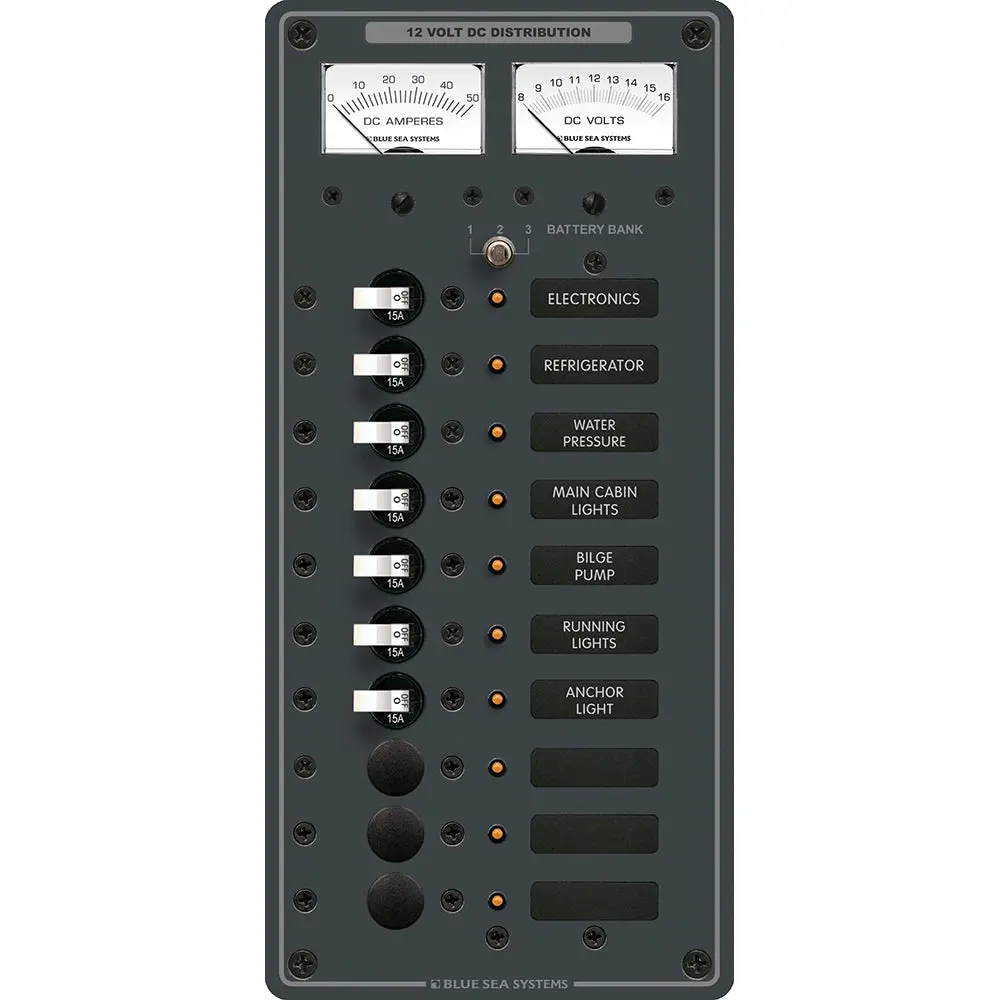

Blue Sea 8082 DC 10-Position Toggle Branch Circuit Breaker Panel

Description

8082 DC 10 Position Toggle Branch Circuit Breaker Panel

Features:

• All positive, negative and grounding buses installed, fully pre-wired
• Includes set of 30 common DC labels
• Label backlighting pre-installed
• All LEDs installed
• Detailed installation instructions and cutout template
• 8028, 8-16 Volt DC Micro Voltmeter
• 8041, 0-50 Amp DC Micro Ammeter
• Owner upgradeable to 24 Volts DC with 8243, 10-32 Volt DC Micro Voltmeter
• 7 15A Single Pole circuit Breakers

Specifications:

• Positions: 10
• Nominal Voltage: 12v DC
• Maximum Amperage: 50A
• Height: 11.25″
• Width: 5.25″
• Depth: 2.5″
• Weight: 3.35 lbs

Included:

• (7) 7210 A-Series White Toggle Circuit Breaker – Single Pole 15A
• (1) 8030 Basic DC Panel Label Set – 30 Labels
• (1) 8028 DC Micro Voltmeter – 8 to 16V DC (Meter)
• (1) 8041 DC Micro Ammeter – 0 to 50A w/ Shunt (Meter)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Max Breaker Quantity: 10
• AC/DC: DC
• Voltage: 12v
• Box Dimensions: 5″H x 10″W x 13″L WT: 3.3 lbs
• UPC: 632085080822

Quick Guide (pdf)
Owner’s Manual (pdf)
