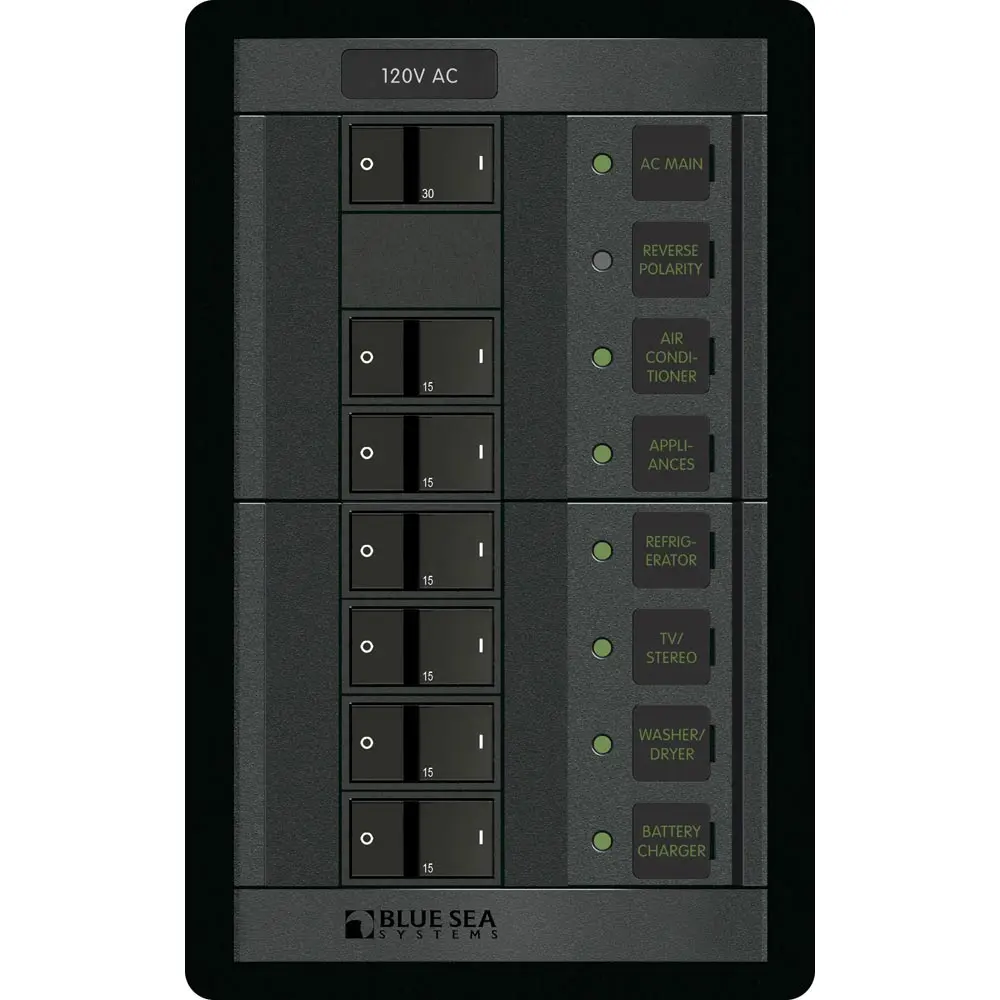

Blue Sea Systems 1202 Vertical 120V AC Distribution Panel – Main + 6 Outputs

Description

120 Volt AC Main + 6 Position – Vertical
Features:

• All circuit label positions are backlit
• “ON” indicating LEDs installed in all circuit positions
• Includes 4206-Square Format Label Set

Specifications:

• Positions: 6
• Nominal Voltage: 120V AC
• Maximum Amperage*: 100A
• Height: 7.75″ (196.85mm)
• Width: 4.88″ (123.95mm)
• Depth: 3.00″ (76.2mm)
• Weight: 2.70lb (1.22kg)

Includes:
(6) – 7403 – A-Series Flat Rocker Circuit Breaker – Single Pole 15A
(1) – 4206 – Basic AC Label Kit – 30 Black Square Labels [LABEL]
(1) – 7414 – A-Series Flat Rocker Circuit Breaker – Double Pole 30A (Main)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AC/DC: AC
• Box Dimensions: 6″H x 6″W x 12″L WT: 2.6 lbs
• UPC: 632085012021

Quick Guide (pdf)
Owner’s Manual (pdf)
