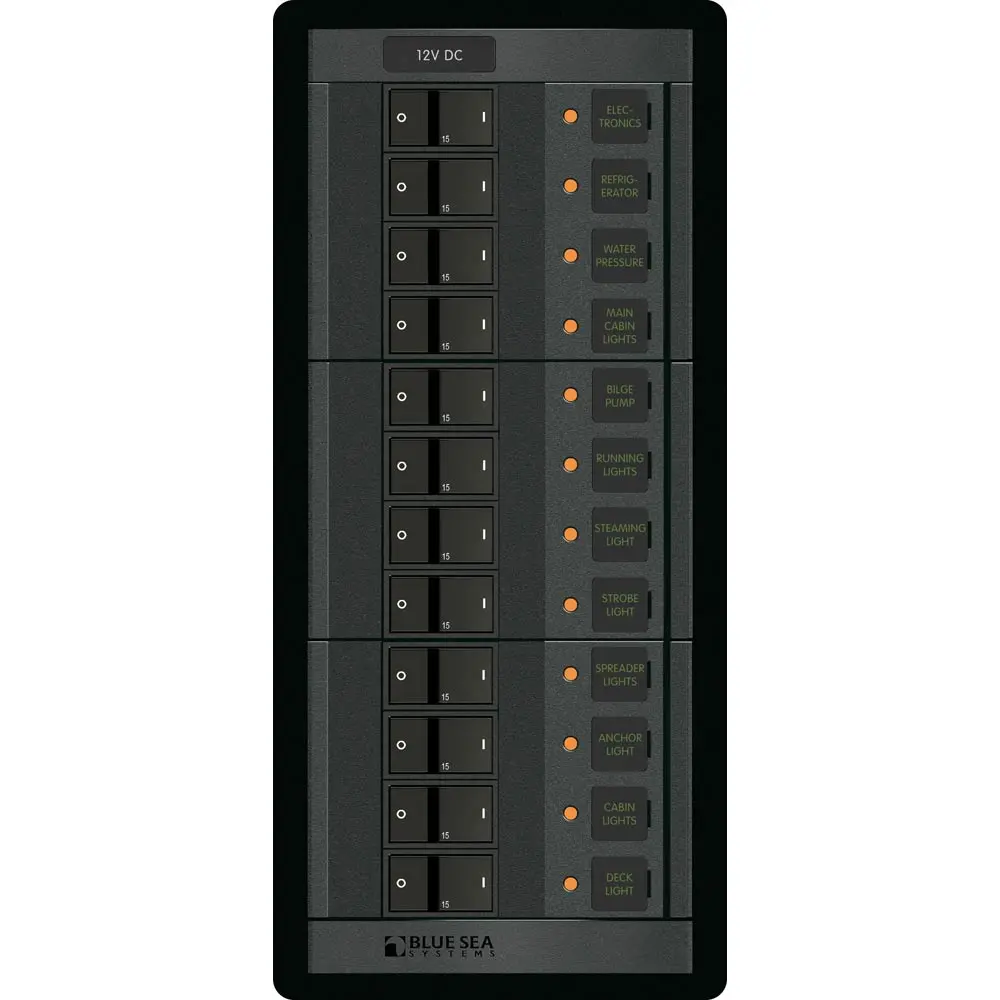

Blue Sea Systems 1223 12V DC 12-Circuit Distribution Panel

Description

12 Volt DC 12 Position
Features:

• 4 to 32 branch circuits with installed 15 Ampere circuit breakers
• Available with voltmeters, ammeters, and digital multimeters
• Includes 4205-Square Format Label Set

Specifications:

• Positions: 12
• Nominal Voltage: 12V DC
• Maximum Amperage*: 100A per bus
• Height: 10.75″ (273.05mm)
• Width: 4.88″ (123.95mm)
• Depth: 3.00″ (76.2mm)
• Weight: 4.85lb (2.2kg)

* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.
Includes:
(12) – 7403 – A-Series Flat Rocker Circuit Breaker – Single Pole 15A
(1) – 4205 – Basic DC Label Kit – 30 Black Square Labels [LABEL]

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AC/DC: DC
• Box Dimensions: 5″H x 9″W x 12″L WT: 4.5 lbs
• UPC: 632085012236

Quick Guide (pdf)
Owner’s Manual (pdf)
