Blue Sea Systems 8086 Multi-Source Toggle Breaker Panel — AC Triple Input + 12, DC Main + 19 Circuits, White Switches

Description

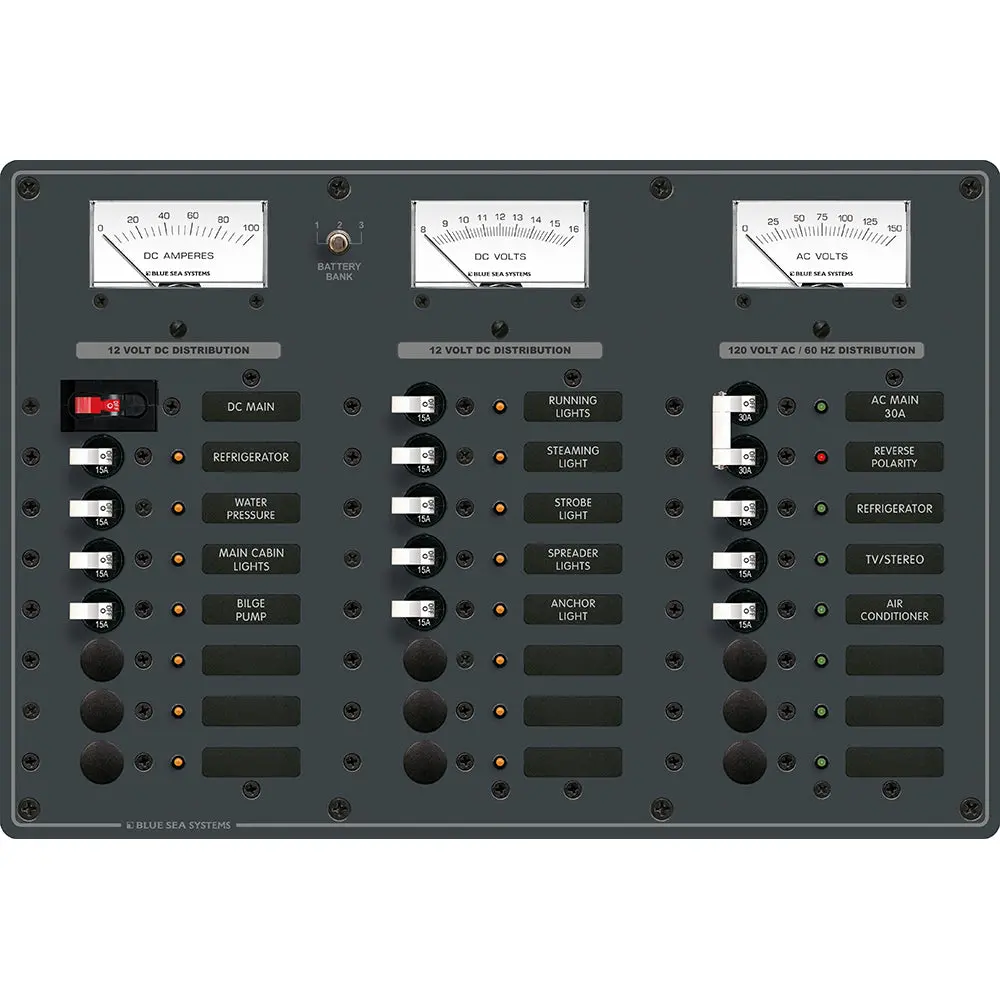

8086 AC 3 Sources +12 Positions/DC Main +19 Position Toggle Circuit Breaker Panel – White Switches

Features:

• Includes set of 30 common AC and 30 common DC labels
• All AC and DC buses installed, fully pre-wired
• Label backlighting pre-installed
• All LEDs installed
• Maximum panel Amperage
  • 100 Amperes DC
  • 50 Amperes AC

AC Features:

• Two separate AC load groups with transfer switch to combine into one load group
• Switch allows Ammeter and Voltmeter to read either AC load group
• Reverse polarity indicators on both AC load groups
• Ready for installation of optional 4031 AC Isolation Cover
• 9353, 0-150 Volt AC Voltmeter
• 9630, 0-50 Amp AC Ammeter

DC Features:

• 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
• 8003, 8-16 Volt DC Voltmeter
• 8017, 0-100 Amp DC Ammeter

Specifications:

• AC Positions: Source Selectors +12
• DC Positions: Main +19
• 120 Volts AC
• 12 Volts DC
• (3) 30A – (1) 50A – (6) 15A AC Circuit Breakers
• (1) 100A – (13) 15A DC Circuit Breakers

*Combined AC/DC panels require a AC Insulating Cover to meet ABYC Standards

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Max Breaker Quantity: 12 AC / 19 DC
• AC/DC: Both
• Voltage: 120v/12v
• Box Dimensions: 6″H x 15″W x 23″L WT: 12.5 lbs
• UPC: 632085080860
