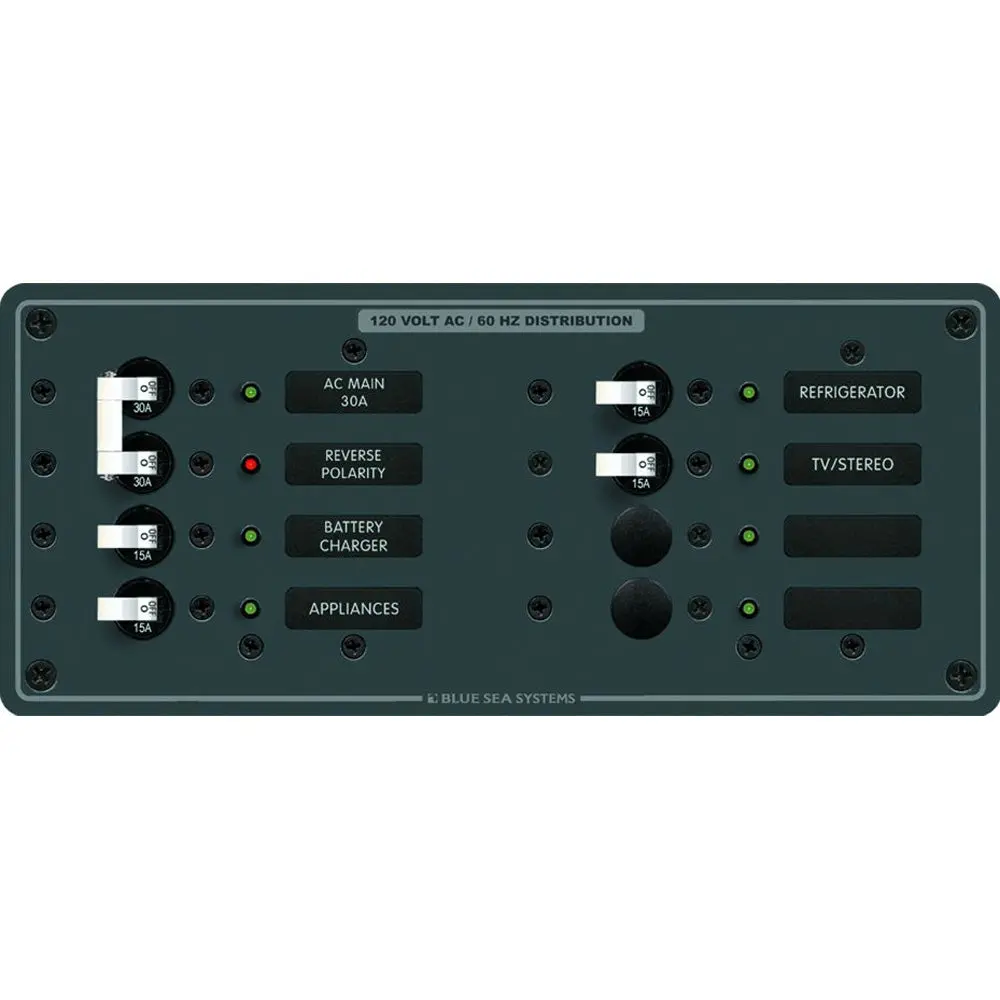

Blue Sea Systems 8412 AC Main Distribution Panel: White Housing, 6-Circuit + Main Bus

Description

AC Main + 6 Positions
Description: Main + 6 Positions
30A Double Pole Installed: 1
15A Single Pole Installed: 4

• Red reverse polarity indicating LED
• All hot, neutral and safety ground buses installed, fully pre-wired
• All circuit label positions are backlit on standard panels – No kit required
• “ON” indicating LEDs installed in all circuit positions
• Maximum panel amperage – 50 Amperes

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 120v
• AC/DC: AC
• Max Breaker Quantity: 6
• Box Dimensions: 5″H x 9″W x 12″L WT: 3 lbs
• UPC: 632085084127

Owner’s Manual (pdf)
