Custom-Cut Samson Amsteel Blue Rope – Red

Description

Product Description

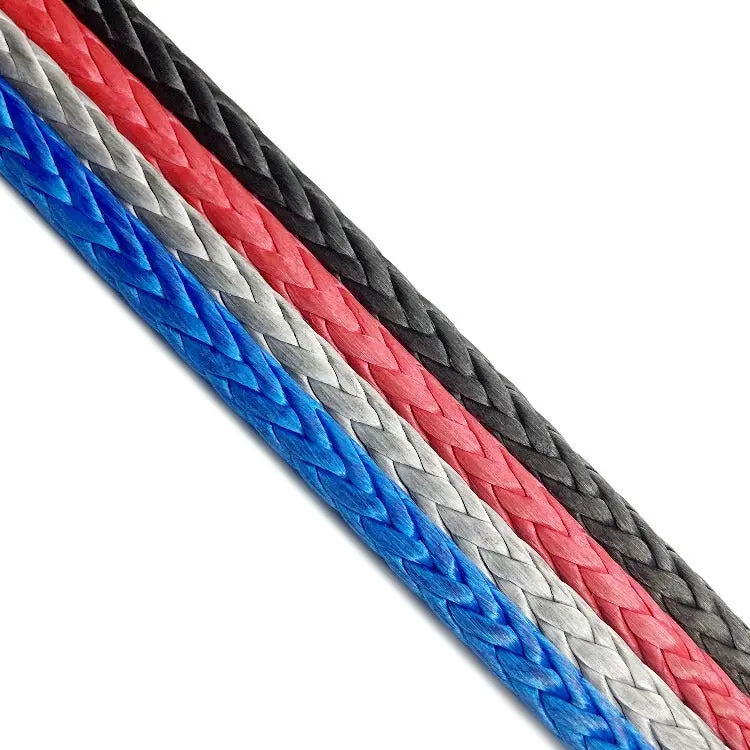

Cut Lengths of Samson Amsteel Blue – Red
AmSteel^®-Blue is a torque-free 12-strand braid that, size-for-size, is as strong as steel but outlasts wire 3:1, making it an excellent wire rope replacement. At only 1/7th the weight of wire, it is a safe and efficient solution for all marine applications where wire is traditionally used. The combination of Dyneema^® fiber and Samthane coating provide abrasion and tension fatigue resistance for superior wear. AmSteel^®-Blue is easily spliced and inspected. AmSteel^®-Blue is recommended for split-drum winch applications. It is not recommended for use on H-bitts, capstans, or cleats if surging or rendering the rope is required. AmSteel^®-Blue has been verified by ABS according to MEG4, and is type approved by: ABS, BV, DNV, Lloyd’s, and RMRS.

Please note that diameters 7/64″ and smaller are 8-strand rather than 12-strand

Specifications:

Diameter (inches)	Weight per 100′ (lbs)	Tensile Strength (lbs)
7/64″	0.30	1,600
1/8″	0.50	2,500
5/32″	0.75	4,000
3/16″	1.00	5,400
1/4″	1.60	8,600
5/16″	2.70	13,700
3/8″	3.40	19,600
7/16″	4.50	23,900
1/2″	5.90	34,000
5/8″	10.2	52,800
3/4″	13.3	64,400

Applications:

Uncovered: Primary cascades, vangs, travelers for dinghies

Covered: Halyards, sheets & tack lines

ATV / Jeep Winch Lines

Working Winch Lines

Control Lines and Halyards

Davits

Emergency Tow Systems

General Working Lines / Vessel Mooring

Lifelines / lifting slings

Primary Mooring Lines / Non-jacketed

Pulling / Stringing Lines

Reef Lines

Running Back

Shield Hauler

Stage, Event, and Special Effects Rigging

Trapeze Line

Trawl or Bridle Lines

Tug Lines

Robotics projects
