Lewmar Size 03 Self-Supporting Low-Profile Hatch

Description

Product Description

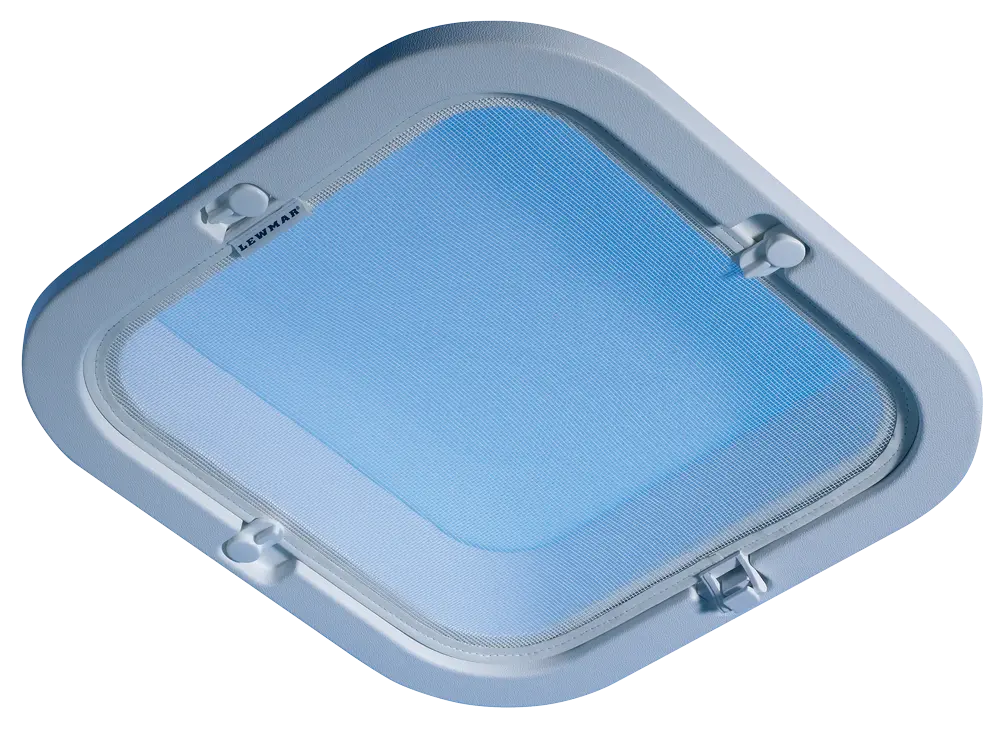

Lewmar Size 03 Low Profile Self Supporting Hatch
All sizes suitable for CE Area 2 (Deck, Coach roof, Cockpit and Transom).
Mounting Instructions:
Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section use (M6 / 1/4″). Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.
Specifications

Support System – Self Supporting

Lower Frame (in) – 9/16

Acrylic Color – Smoke Grey

Hatch Weight (lb) – 3.5

Acrylic Window Thickness (in) – 5/16
Dimensions

Length X (in) – 9 11/16

Width Y (in) – 11 7/8

Height Z (in) – 1

Radii R (in) – 2 7/8

Cut-Out Length X1 (in) – 6 15/16

Cut-Out Width Y1 (in) – 9 1/8

Cut-Out Radii R1 (in) – 1 11/16
