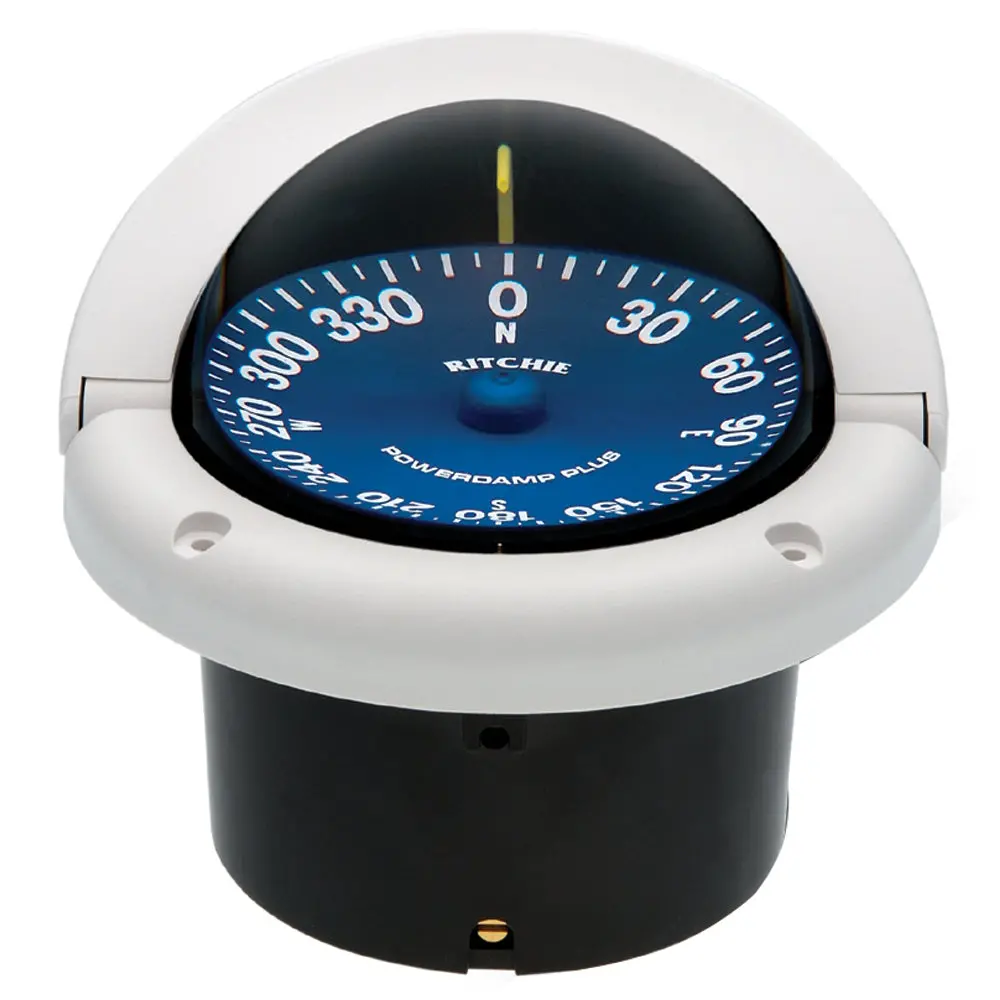

Ritchie SS-1002W Flush-Mount Compass – Compact White Supersport Marine Compass [SS-1002W]

Description

SuperSport Compass

Developed for and tested on offshore race boats the SuperSport Series compasses feature the PowerDamp® Plus dial. This dial technology features the PowerDamp? dial skirt to prevent oscillation, larger DirectiveForce™ magnets for quick lock on and extra-large steel pivots and jewels for smooth fast action.

Features

• 3 3/4″ (96 mm) PowerDamp Plus, High-Visibility Blue Open Face Dial with Extra Large White Numerals
• Easily Installed, Fits 4″ (10.16 cm) Mounting Hole
• Built-in Compensators to Easily Adjust for Deviation
• Built-in 12v Green LED lighting in Movable Sun Shield
• Adapter Rings Available. Sold separately. 6″ (15.24)
• 100% Repairable
• Exclusive 5-Year Ritchie Warranty

Notes:

 24 & 32v lighting options are available. Some custom built OEM models may have different lighting.

Specifications:

• Mounting Style: Flush
• Lubber Lines: Yes
• Backlight: Yes
• Read: Rear

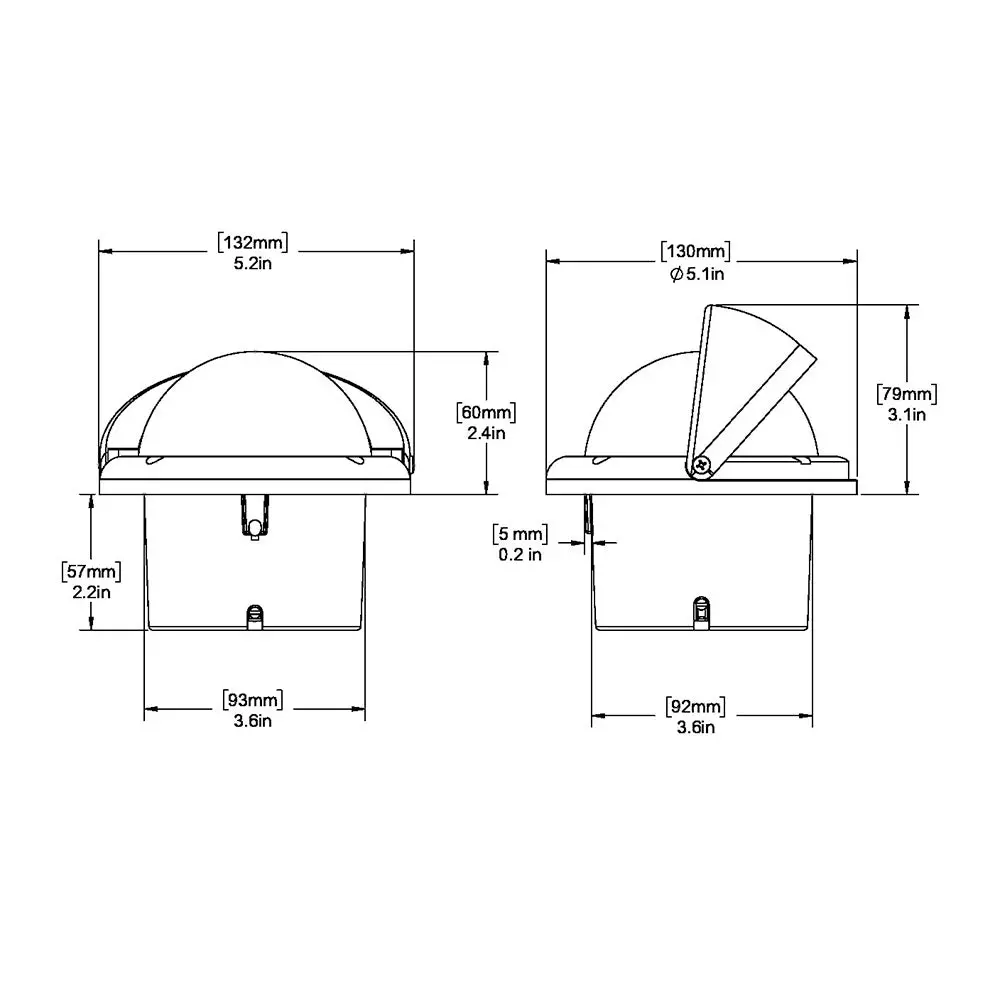

• Box Dimensions: 7″H x 8″W x 8″L WT: 2.1 lbs
• UPC: 010342138293

Quick Guide (pdf)
Owner’s Manual (pdf)
