Tylaska 2 3/4″ T5 Swivel with Standard and Large Bail Configuration

Description

Product Description

Tylaska 2 3/4″ T5 Standard/Large Bail Swivel
Large Bails provide room for up to three additional shackles or a combination of shackles and lines. Ideal for spinnaker sheets, guys or other multi-line applications.
Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.
Specifications:
Shackle Type: T5 Std/Large Bail Swivel
Safe Working Load (lb.): 2,500 (1,130kg)
Breaking Strength (lb.): 5,000 (2,270kg)
Weight (oz.): 1.8

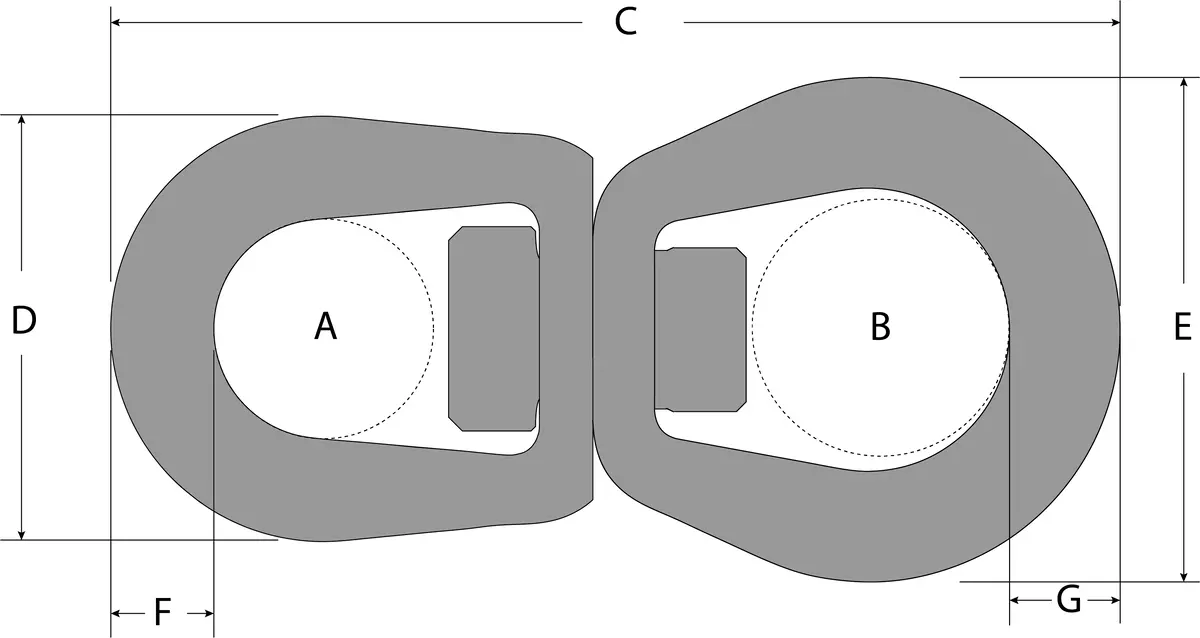

Dimensions:
A (in.): 0.53″ (13.5mm)
B (in.): 0.81″ (20.6mm)
C (in.): 2.74″ (69.6mm)
D (in.): 1.01″ (25.7mm)
E (in.): 1.44″ (36.6mm)
F (in.): 0.24″ (6.1mm)
G (in.): 0.29″ (7.3mm)
