Tylaska 2.4″ J12 J-Lock Shackle for High-Tension Applications

Description

Product Description

Tylaska 2.4″ J12 J-Lock Shackle
Easily spliced onto Genoa sheets, outhauls and halyards, the low-profile Tylaska J-Locks fit through most Genoa blocks for fast sheet changes. The unique patented double-locking plunger locks in two directions to provide the ultimate protection against accidental opening during flogging.Easy to use working mechanism
Heat treated 17-4 PH stainless steel
Specifications:
J Lock Type: J12
Safe Working Load (lb.): 6,000 (2,722kg)
Breaking Strength (lb.): 12,000 (5,443kg)
Line Size (mm): 7/16″ – 1/2″ (10mm-12mm)
Weight (oz.): 2.9 (82g)

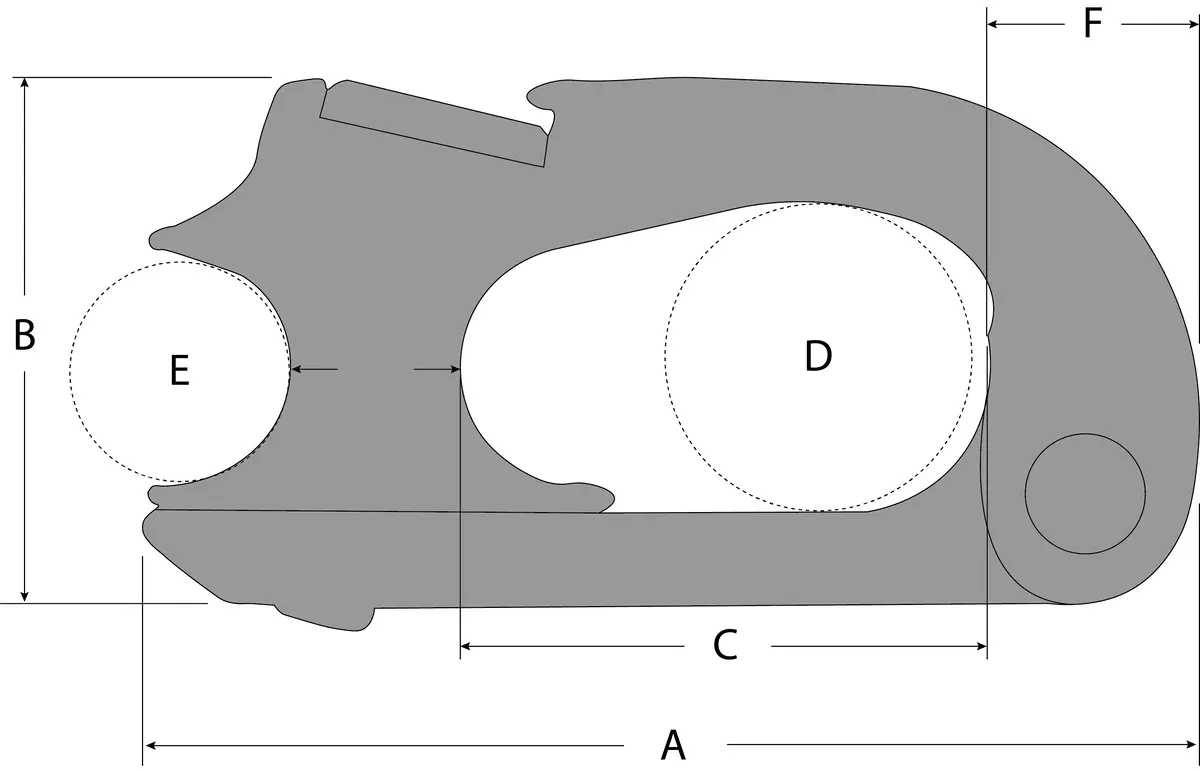

Dimensions:
A (in.): 2.43″ (61.7mm)
B (in.): 1.21″ (30.7mm)
C (in.): 1.20″ (30.5mm)
D (in.): 0.69″ (17.5mm)
E (in.): 0.50″ (12.7mm)
F (in.): 0.48″ (12.2mm)
Thickness (in.): 0.39″ (9.91mm)
