Tylaska 6-13/16″ T30 Clevis Bail Snap Shackle

Description

Product Description

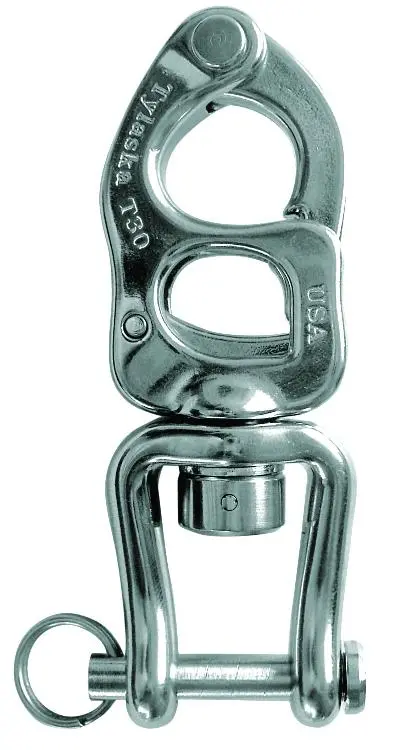

Tylaska 6 13/16″ T30 Clevis Bail Snap Shackle
Tylaska T30 is designed for large sailboats that need to support strong loads. With a breaking strength of 30,000 pounds, this shackle can handle sail loads on the largest of sailboats. A number of around-the-world racing teams utilize the T30.
Specifications:
Shackle Type: T30 Clevis Bail
Safe Working Load (lb.): 15,000 (6,800kg)
Breaking Strength (lb.): 30,000 (13,610kg)
Boat Size (ft.): 60′ – 80′
Weight (oz.): 31.7 (899g)

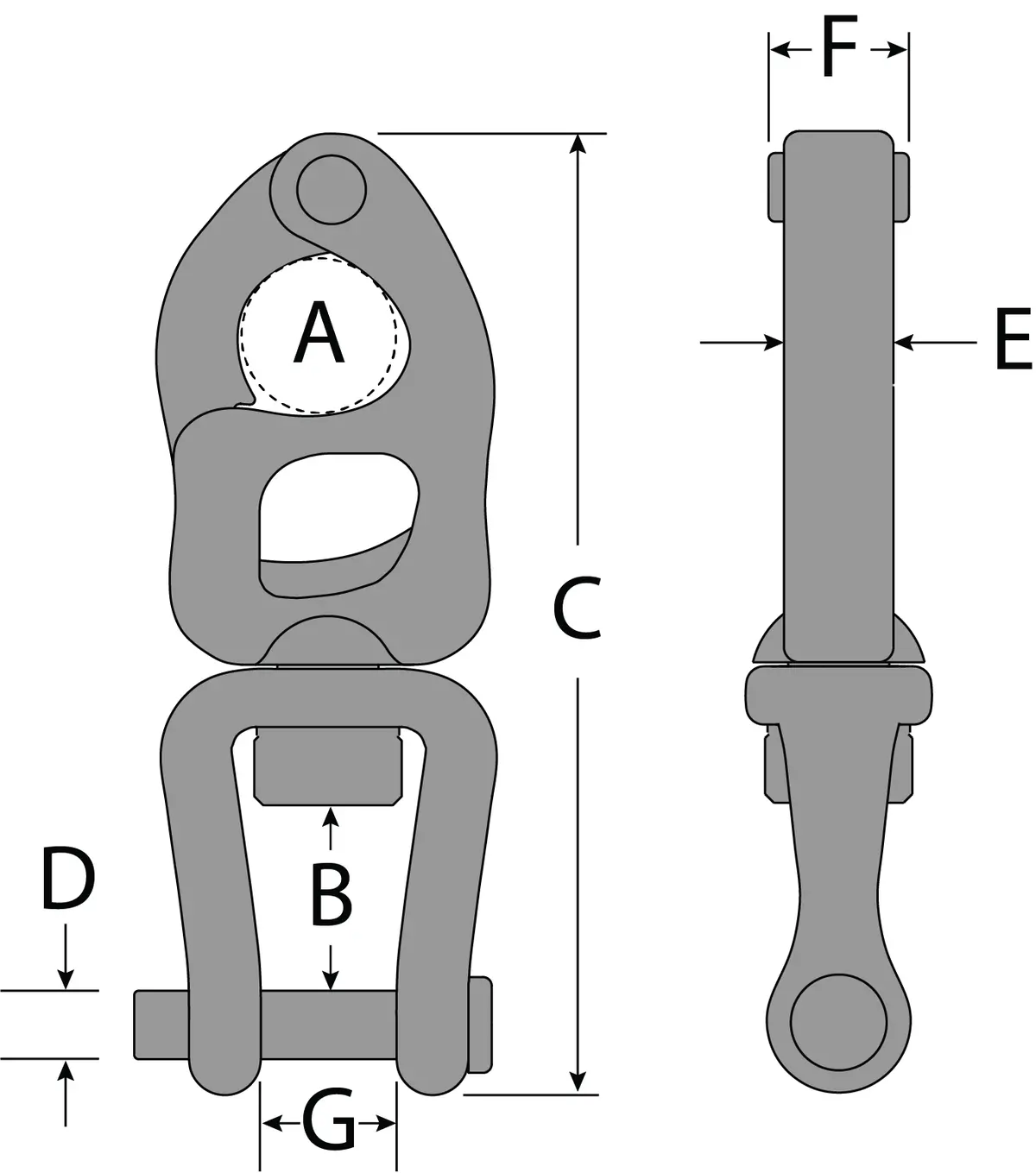

Dimensions:
A (in.): 1.23″ (31.2mm)
B (in.): 1.29″ (32.8mm)
C (in.): 6.91″ (175.5mm)
D (in.): 0.56″ (14.3mm)
E (in.): 0.77″ (19.6mm)
F (in.): 0.97″ (24.7mm)
G (in.): 1.03″ (26.2mm)
