Tylaska T5 Large-to-Large Bail Swivel – 3 1/16 Inch

Description

Product Description

Tylaska 3 1/16″ T5 Large/Large Bail Swivel
Large Bails provide room for up to three additional shackles or a combination of shackles and lines. Ideal for spinnaker sheets, guys or other multi-line applications.

Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.
Specifications
Shackle Type: T5 Large/Large Bail Swivel
Safe Working Load (lb.): 2,500 (1,130kg)
Breaking Strength (lb.): 5,000 (2,270kg)
Weight (oz.): 2.6

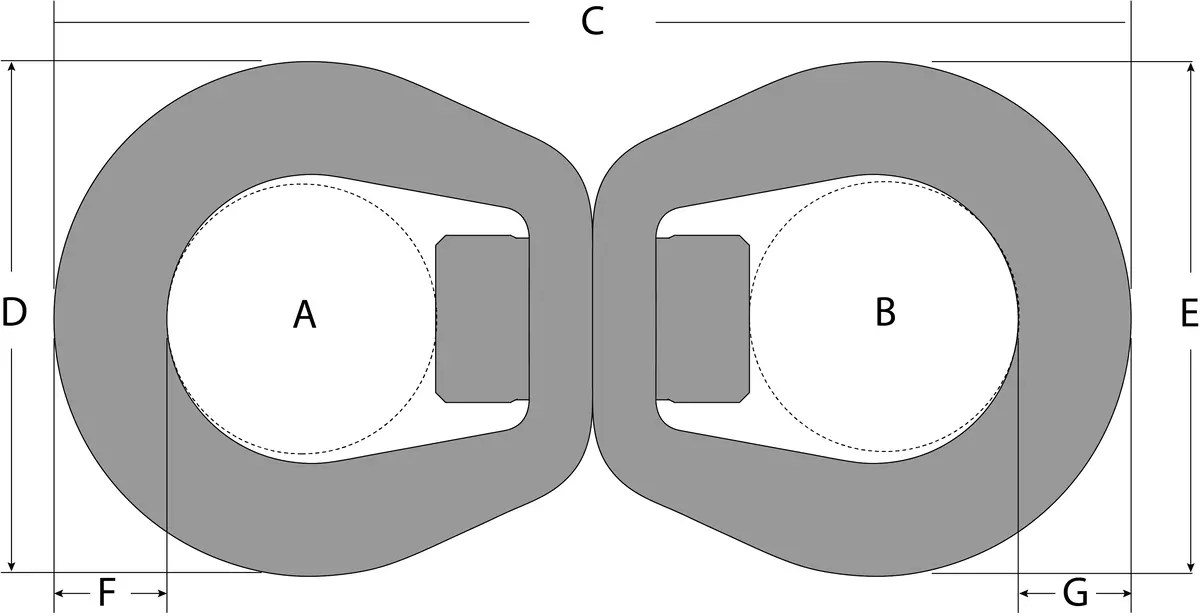

Dimensions:
A (in.): 0.81″ (20.6mm)
B (in.): 0.81″ (20.6mm)
C (in.): 3.12″ (79.2mm)
D (in.): 1.44″ (36.6mm)
E (in.): 1.44″ (36.6mm)
F (in.): 0.29″ (7.3mm)
G (in.): 0.29″ (7.3mm)
