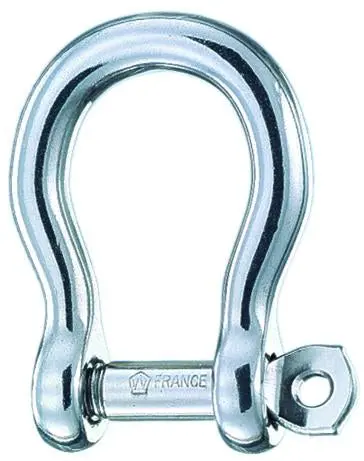

Wichard 1/4″ Diameter Bow Shackle w/ Captive Pin
Features
Description
Applications
Material
Explore more from our collection.
Sale!
Weight – 0.073 Lbs (33 g)
Working Load – 1323 Lbs (600 kg)
Breaking lLoad – 3880 Lbs (2200 kg)
A – 1 1/16″ (27mm)
B – 15/32″ (12mm)
C – 9/32″ (7mm)
Diameter – 15/64″ (6mm)
Description
Captive pin bow shackle forged in grade 316L stainless steel
The pin is connected to the body at all times even when opened
The pin is locked into one of the indentations
No risks of loose due to vibrations
Outstanding working and breaking loads
Single handed operation for more safety
Applications
To be used when ample room is required
Possibility to attach several lines or cables
Material
Grade 316L stainless steel
Wichard Bow Shackle with Captive Pin – 1/4″ Diameter
Original price was: $38.35.$25.57Current price is: $25.57.
In stock
