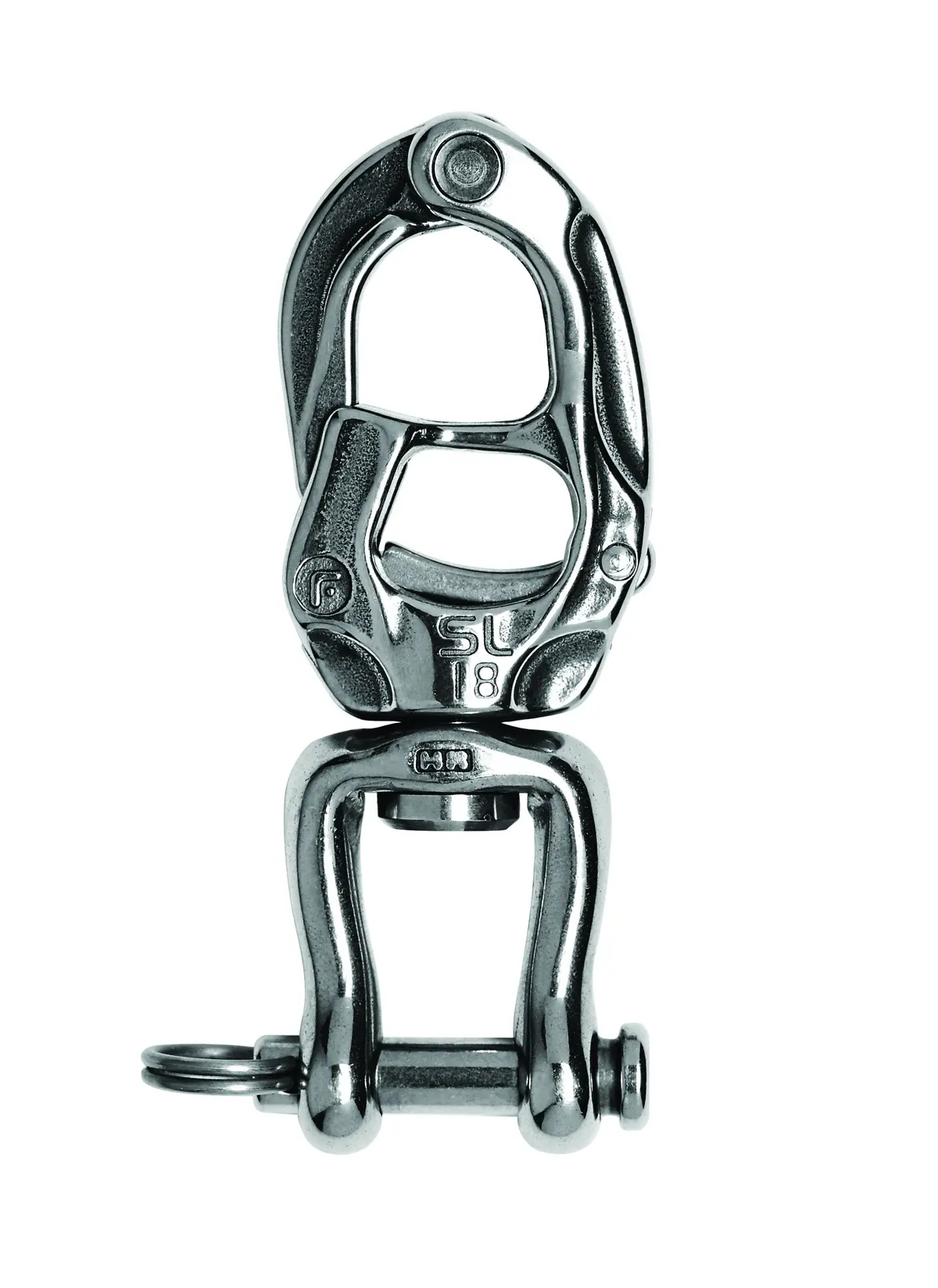

Name: Wichard Trigger Snap Shackle with Integrated Swivel – 4 1/8"
Brand: Wichard
SKU: 2855
Availability: InStock

Description

Product Description

Wichard 4 1/8″ Trigger Snap Shackle w/ Swivel Shackle
Features

Weight – 0.406 Lbs (184 g)

Length – 4 1/8″ (105mm)

Working Load- 3527 Lbs (1600 kg)

Breaking Load- 7055 Lbs (4000 kg)

A – 7/8″ (22mm)

B – 33/64″ (13mm)

C – 7/16″ (11mm)

D – 9/32″ (7mm)
Description

HR forged trigger snap shackle with swivel shackle

The opening is made by hand (low load) or by using a release fid

Allows to attach a non spliced sheet.

Free rotation of the snap shackle thanks to the swivel

Outstanding working and breaking loads
Applications

Trigger snap shackle requiring no splicing sheet

Many fastening applications: furling systems, deck fitting…
Material

HR stainless steel 17.4 PH
