Name: Lewmar Size 10 Atlantic-Style Portlight
Brand: Lewmar
SKU: 39110070
Availability: InStock

Description

Product Description

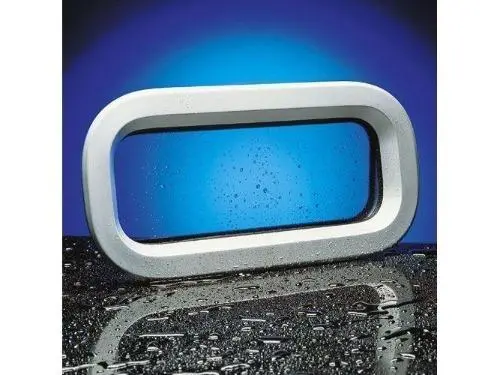

Lewmar Size 10 Atlantic Portlight
Specifications

Hull Valance – Thick

Version – Opening

Acrylic Color – Smoke Grey

Frame Color – Silver

Hatch Weight (lb) – 3.5

Acrylic Window Thickness (in) – 5/16
Dimensions

Overall Width X (in) – 6 7/8

Overall Length Y (in) – 12

Overall Height Z (in) – 1/4

Overall Radii R (in) – 2 13/16

Cut-Out Width X1 (in) – 6 1/16

Cut-Out Length Y1 (in) – 11 3/16

Cut-Out Radii R1 (in) – 2 3/8
Notes:

Portlights and fixed lights should be fitted to a flat surface with a maximum tolerance 1mm

Smoke grey acrylic and silver anodized frames

Portlight opening is restricted on very thick hulls. At 24mm hull thickness, opening angle is 115

Thick Hull Valance Fastening Required

Hull thickness 16-19mm: M5 x 20mm long (kit ref 360362999)

Hull thickness 20-24mm: M5 x 25mm long (kit ref 360361999)

Supplied as standard with thick hull valances

Fastening kits supplied in bag of 100
